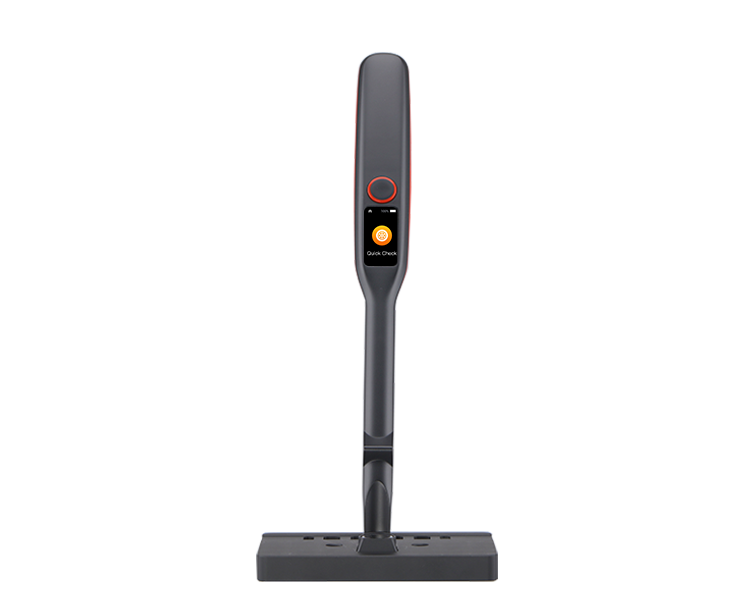

The MaxiTPMS TBE100 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 0.95” AMOLED touchscreen, displaying measurement data in real-time. TBE100 can work with MaxiTPMS ITS600 to access detailed replacement & maintenance suggestions for quick tire service, document tire wear and damage, and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.

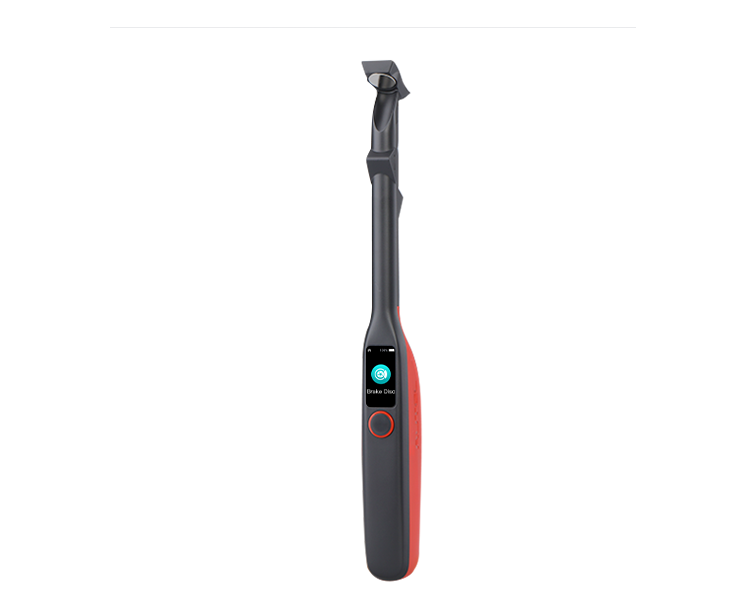

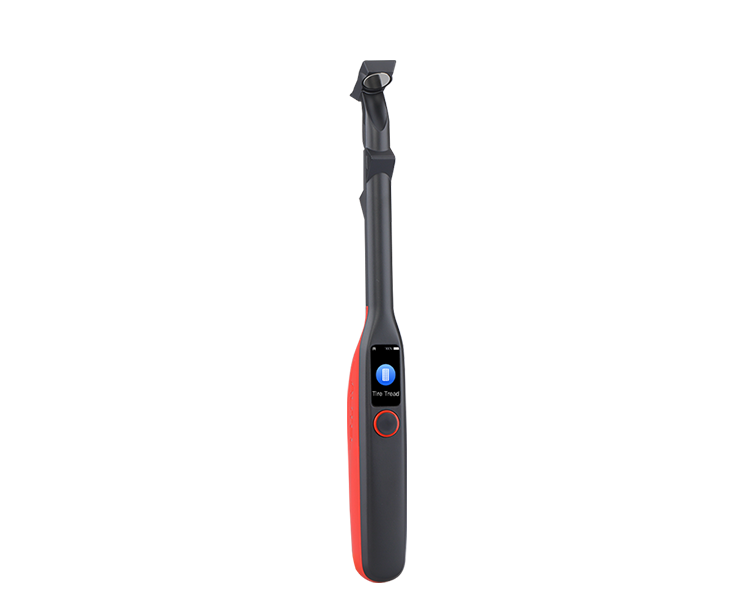

• Tire tread depth & brake disc wear check in one tool

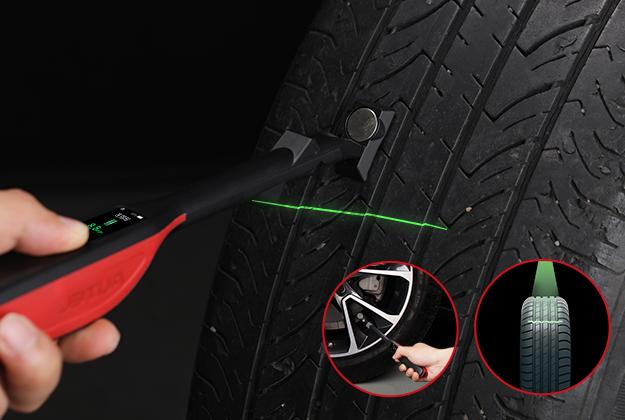

• Laser measurement with 0.1mm accuracy
• No need to remove the wheel during measurement

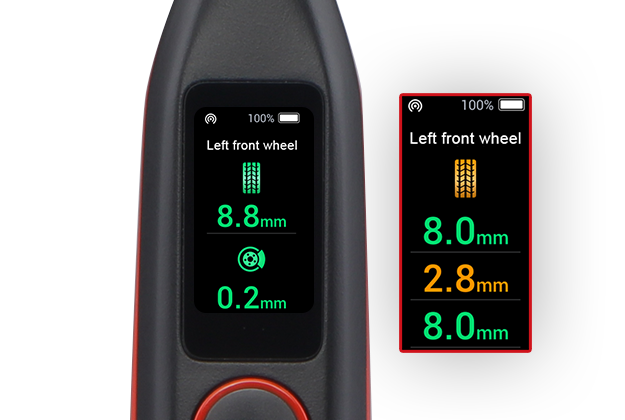

• Real-time measurement data on touchscreen
• Full tread measurement
• Quick Check both tire tread & brake disc
• Uneven wear analysis (Requires ITS600)
• Replacement & maintenance suggestions (Requires ITS600)

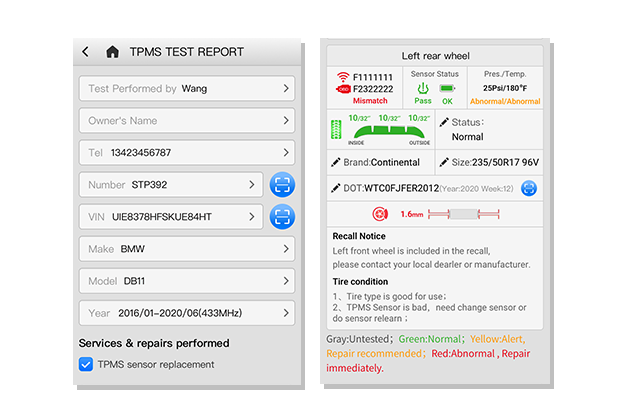

• Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
| Recommended Use | Indoor |
| Processor | 4x ARM Cortex-A35 (1.5 GHz) |
| Memory | 1GB RAM LPDDR3 & 4GB ROM |
| Display | 0.95-inch AMOLED capacitive touchscreen with 120x240 resolution |
| Connectivity |
• Wi-Fi • USB 2.0, Type C |
| Camera | CMOS WXGA, 1 megapixel, 30fps |
| Audio output | Output: Beep |
| Power and Battery |
• 3.8 V/1400 mAh lithium-ion battery • Charges via 5 V AC/DC power supply |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 200 mA (AMOLED on with default brightness) @3.7 V |
| Operating Temp. | -10 to 45°C(14 to 113°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 277.0 mm (10.9”) x 28.7 mm (1.13”) x 33.5 mm (1.32”) |
| Net Weight | 138 g (0.31 lb.) |
| Protocols |
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |

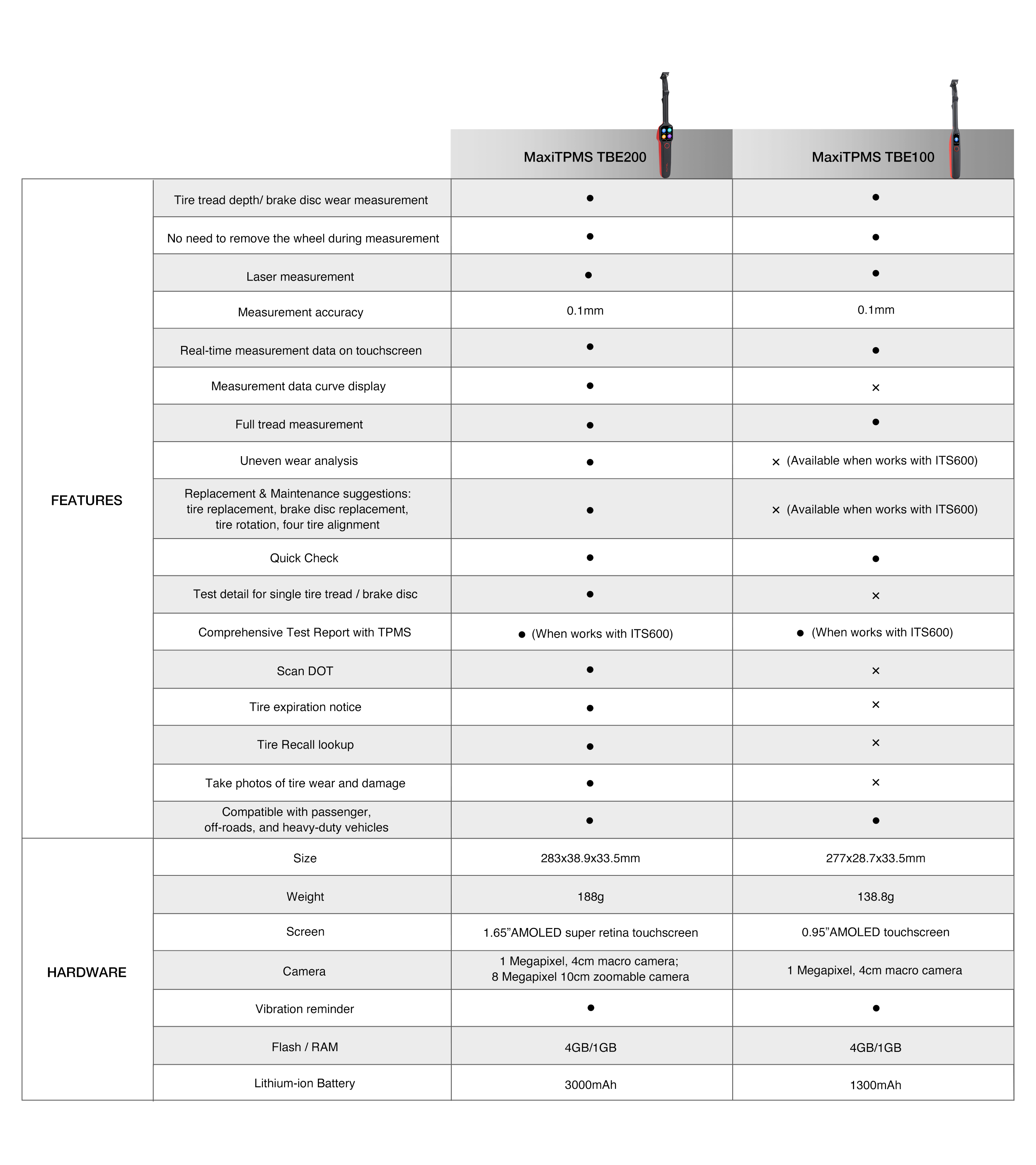

| Comparison | MaxiTPMS TEB 200 | MaxiTPMS TEB 100 |
|---|---|---|
| FEATURES | ||
| Tire tread depth/ brake disc wear measurement |
 |
|
| No need to remove the wheel during measurement |
|
|
| Laser measurement |
|
|
| Measurement accuracy | 0.1mm | 0.1mm |
| Real-time measurement data on touchscreen |
|
|
| Measurement data curve display |
|
|
| Full tread measurement |
|
|
| Uneven wear analysis |
|
(Available when works with ITS600) |
|
Replacement & Maintenance suggestions: Tire replacement, brake disc replacement, tire rotation, four tire alignment |
|
(Available when works with ITS600) |
| Quick Check |
|
|
| Test detail for single tire tread / brake disc |
|
|
| Comprehensive Test Report with TPMS |
(When works with ITS600) |
(When works with ITS600) |
| Scan DOT |
|
|
| Tire expiration notice |
|
|
| Tire recall lookup |
|
|
| Take photos of tire wear and damage |
|
|
| Compatible with Passenger cars, off-roads, commercial vehicles |
|
|
| Hardware | ||
| Size | 283x38.9x33.5mm | 277x28.7x33.5mm |
| Weight | 188g | 138.8g |
| Screen | 1.65”AMOLED super retina touchscreen | 0.95”AMOLED touchscreen |
| Camera | 1 Megapixel, 4cm macro camera; 8 Megapixel 10cm zoomable camera | 1 Megapixel, 4cm macro camera |
| Vibration reminder |
|
|
| Flash / RAM | 4GB/1GB | 4GB/1GB |
| Lithium-ion Battery | 3000mAh | 1300mAh |
Main Unit
Calibration Table
Power Adapter
Type C USB Cable
Quick Reference Guide
Packing List
Carrying Case
